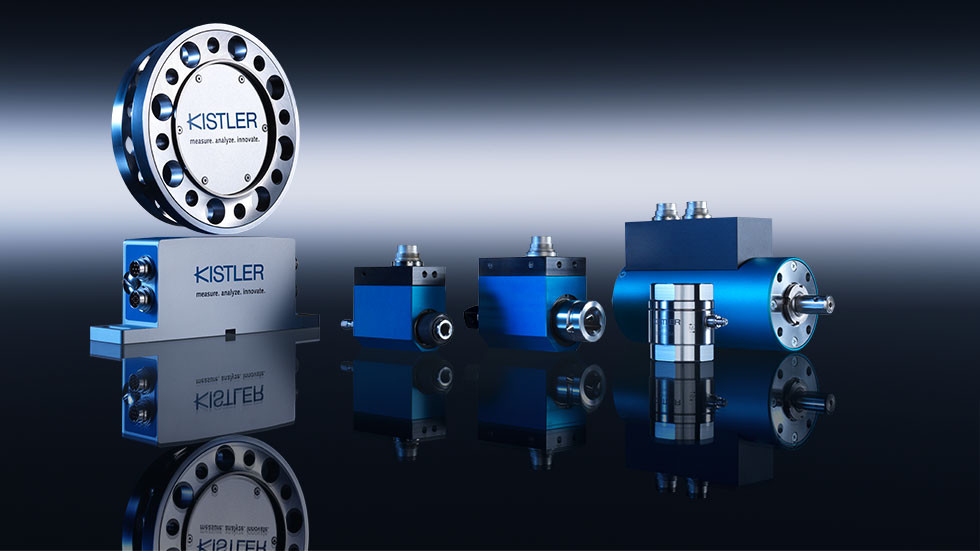

This Component Finder will make it easier for you to search for generic torque sensors that can be used for general measurements in research and development or in test laboratories. As well as generic torque sensors, Kistler offers a vast range of customized solutions for torque measurement in specific applications (see the information box on the right).

In universities and industry, for basic research or quality assurance: Kistler torque sensors guarantee precise definition of the power and friction values of drives, transmissions and pumps. Strain gage technology (DMS) is a powerful solution for measurements on rotating shafts, and also for long-term dynamic and static measurements. Maximum precision, the most rigid structure possible and high temperature stability: thanks to these assets, strain gage technology can accomplish the most demanding tasks. Piezoelectric reaction torque sensors offer convincing features such as exceptional overload protection, high signal resolution and a wide frequency range. They are ideal for measurement tasks when conditions are difficult due to geometry, temperature range or dynamics.

Category:
  • Description
  • Reviews (0)

Description

1-Component Reaction Torque Sensor, Mz up to ±25 N∙m / ±18 ft∙lb

Type 9049

Properties:

  • Dimensions (D / d / H)   36 / 17 / 12 mm
  • Connector 10-32UNF
  • Sensitivity –250 pC/N∙m (–338 pC/ft∙lb)
  • Calibration after installation

csm_934-613_web_df69704954

1-Component Reaction Torque Sensor, Mz up to ±200 N∙m / ±147 ft∙lb

Type 9069

Properties:

  • Dimensions (D / d / H)   52 / 26.5 / 15 mm
  • Connector 10-32UNF
  • Sensitivity –175 pC/N∙m (–237 pC/ft∙lb)
  • Calibration after installation

csm_934-614_web_f9de9b0ea3

1-Component Reaction Torque Link, Mz up to ±200 N∙m / ±147 ft∙lb

Type 9275

Properties:

  • Dimensions (D / d / H)   100 / 18.4 / 70 mm
  • Connector TNC neg.
  • Sensitivity –170 pC/N∙m (–230 pC/ft∙lb)
  • Preloaded and precalibrated, ready to measure
  • For table top mounting

csm_933-968_web_7ae2555897

1-Component Reaction Torque Link, Mz up to ±10 N∙m / ±7 ft∙lb

Type 9339A

Properties:

  • Dimensions (D / H)   30 / 34 mm
  • Connector 10-32UNF
  • Sensitivity –460 pC/N∙m (–623 pC/ft∙lb)
  • Preloaded and precalibrated, ready to measure

csm_930-660n-10-04_web_7fbf0397cd

1-Component Reaction Torque Link, Mz up to ±25 N∙m / ±18 ft∙lb

Type 9349A

Properties:

  • Dimensions (D / H)   36 / 42 mm
  • Connector 10-32UNF
  • Sensitivity –230 pC/N∙m (–311 pC/ft∙lb)
  • Preloaded and precalibrated, ready to measure

csm_930-660n-10-04_web_7fbf0397cd

1-Component Reaction Torque Link, Mz up to ±200 N∙m / ±147 ft∙lb

Type 9369A

Properties:

  • Dimensions (D / H)   54 / 60 mm
  • Connector 10-32UNF
  • Sensitivity –130 pC/N∙m (–176 pC/ft∙lb)
  • Preloaded and precalibrated, ready to measure

csm_930-661_web_085ab76d32

1-Component Reaction Torque Link, Mz up to ±1000 N∙m / ±737 ft∙lb

Type 9389A

Properties:

  • Dimensions (D / H)   100 / 130 mm
  • Connector 10-32UNF
  • Sensitivity –100 pC/N∙m (–135 pC/ft∙lb)
  • Preloaded and precalibrated, ready to measure

csm_930-661_web_085ab76d32

Dual Range Torque Sensor

Type 4503A

The sensors with built-in speed sensor function in accordance with the DMS principle. The integrated digital measured value pre-processing generates analog or digital output signals.

csm_931-804n-01-07_web_0a55eb230b
