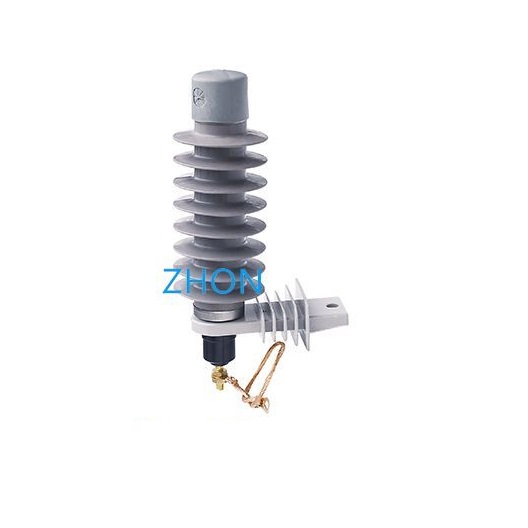

Lightning Surge Metal-Oxide Arrester

Lightning Surge Metal-Oxide Arrester

Category:
  • Description
  • Reviews (0)

Description

Standards: IEC 60099-4

The ambient air themperatures is no higher than +40° C, no lower than-40° C.

The altitude above sea level dose not exceed 2000m.

AC system frequency is 50Hz or 60Hz.

AC voltage brought to bear on arrester for a long time dose not exceed arrester’s continuous operating voltage.

Maximum wind speed dose not exceed 35m/s.

The earthquake intensity dose not exceed 7 degrees.

Polymeric Lightning Surge Metal-Oxide Arrester

Type

Rated
Voltage
Maximun

Continuous

Operating

Voltage

Current impulse residual voltage 2ms Rectangular

current impulse

withstand

4/10µ s High

current impulse

withstand

1/4µ s

Lightning

Current

impulse

8/20µ s

Lightning

current

impulse

30/60µ s

Switching

current

impulse

  kV(rms) kV(rms) kV(crest) kV(crest)   kV(crest)           A   kA(crest)
YH5W-18 18 15.3 61.5 54  46.2       150         65
