CALIPER BRAKES

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12″ and is off ered in 4 sizes to accommodate a ½”, 1″, 1-3/16″, and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The AS thruster is a direct applied thruster that is pneumatically applied spring released. The Pneumatic applied thrusters are offered in multiple sizes to meet the needs of our customers. The T200 thruster produces a maximum braking force of 950 pounds at the maximum operating pressure of 80 psi.

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12″ and is offered in 4 sizes to accommodate a ½”, 1″, 1-3/16″, and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SA thruster is a failsafe thruster that is spring applied pneumatically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T200 SA thruster produces a maximum braking force of 930 pounds at the maximum operating pressure of 90 psi with a maximum pressure of 120 psi.

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12″ and is off ered in 4 sizes to accommodate a ½”, 1″, 1-3/16″, and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The AS thruster is a direct applied thruster that is pneumatically applied spring released. The Pneumatic applied thrusters are off ered in multiple sizes to meet the needs of our customers. The T300 thruster produces a maximum braking force of 3200 pounds at the maximum operating pressure of 66 psi.

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12″ and is offered in 4 sizes to accommodate a ½”, 1″, 1-3/16″, and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The HS thruster is a direct applied thruster that is hydraulically applied spring released. The T300 HS thruster produces a maximum braking force of 3200 pounds at the maximum operating pressure of 1400 psi. (When used with the A300 Caliper)

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12″ and is off ered in 4 sizes to accommodate a ½”, 1″, 1-3/16″, and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SA thruster is a failsafe thruster that is spring applied pneumatically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T300 SA thruster produces a maximum braking force of 3180 pounds at the maximum operating pressure of 75 psi with a maximum pressure of 95 psi.

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12″ and is off ered in 4 sizes to accommodate a ½”, 1″, 1-3/16″, and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SH thruster is a failsafe thruster that is spring applied hydraulically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T300 SH thruster produces a maximum braking force of 3180 pounds at the maximum operating pressure of 1450 psi with a
maximum pressure of 1700 psi when used with the A300 Caliper.

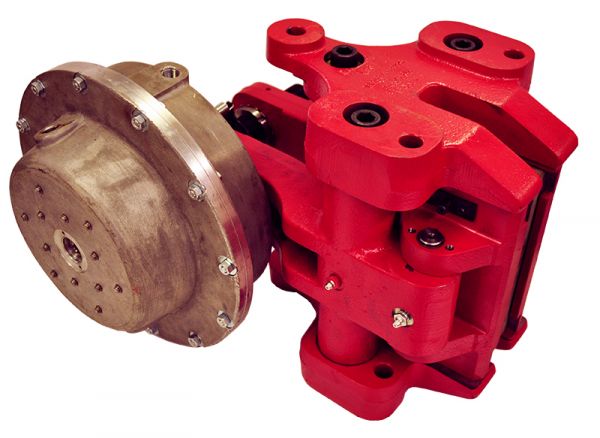

The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24″ and is off ered in 2 sizes to accommodate a 1″ and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SA thruster is a failsafe thruster that is spring applied pneumatically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T300 SA thruster produces a maximum braking force of 5580 pounds at the maximum operating pressure of 88 psi with a
maximum pressure of 110 psi when used with the A400 caliper.

The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24″ and is off ered in 2 sizes to accommodate a 1″ and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SH thruster is a failsafe thruster that is spring applied hydraulically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T300 SH thruster produces a maximum braking force of 5580 pounds at the maximum operating pressure of 1720 psi with a
maximum pressure of 2150 psi when used with the A400 caliper.

The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24″ and is off ered in 2 sizes to accommodate a 1″ and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The AS thruster is a direct applied thruster that is pneumatically applied spring released. The Pneumatic applied thrusters are offered in multiple sizes to meet the needs of our customers. The T400 AS thruster produces a maximum braking force of 8400 pounds at the maximum operating pressure of 67 psi. (This
thruster is only to be used on the A400 caliper)

The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24″ and is off ered in 2 sizes to accommodate a 1″ and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers..

The HS thruster is a direct applied thruster that is hydraulically applied spring released. The T400 thruster produces a maximum braking force of 8081 pounds at the maximum operating pressure of 1600 psi. (This thruster is only to be used on the A400 caliper)

The A400 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24″ and is offered in 2 sizes to accommodate a 1″ and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SA thruster is a failsafe thruster that is spring applied pneumatically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T400 SA thruster produces a maximum braking force of 8366 pounds at the maximum operating pressure of 81 psi with a
maximum pressure of 106 psi. (This thruster is only to be used on the A400 caliper)

 designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The 400 requires a minimum disc diameter of 24″ and is off ered in 2 sizes to accommodate a 1″ and 1-1/2″ thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers.

The SH thruster is a failsafe thruster that is spring applied hydraulically released. The spring applied thrusters are offered in multiple sizes to meet the needs of our customers. The T400 SH thruster produces a maximum braking force of 8366 pounds at the maximum operating pressure of 1875 psi with a
maximum pressure of 2250 psi. (This thruster is only to be used on the A400 caliper)
