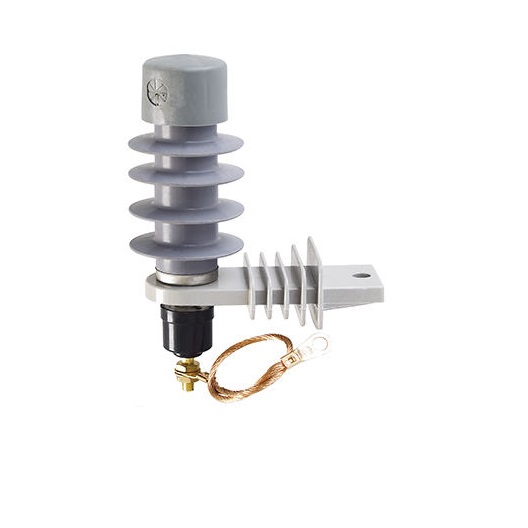

6kv Polymeric Lightning Surge Metal-Oxide Arrester
- Description
- Reviews (0)
Description
Standards: IEC 60099-4
The ambient air themperatures is no higher than +40° C, no lower than-40° C.
The altitude above sea level dose not exceed 2000m.
AC system frequency is 50Hz or 60Hz.
AC voltage brought to bear on arrester for a long time dose not exceed arrester’s continuous operating voltage.
Maximum wind speed dose not exceed 35m/s.
The earthquake intensity dose not exceed 7 degrees.
| Type | Rated Voltage |
Maximun |
Current impulse residual voltage |
2ms Rectangular current impulse withstand |
4/10µ s High current impulse withstand |
||
|
1/4µ s Lightning Current impulse |
8/20µ s Lightning current impulse |
30/60µ s Switching current impulse |
|||||
| kV(rms) | kV(rms) | kV(crest) | kV(crest) | kV(crest) | A | kA(crest) | |
| YH5W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 150 | 65 |
