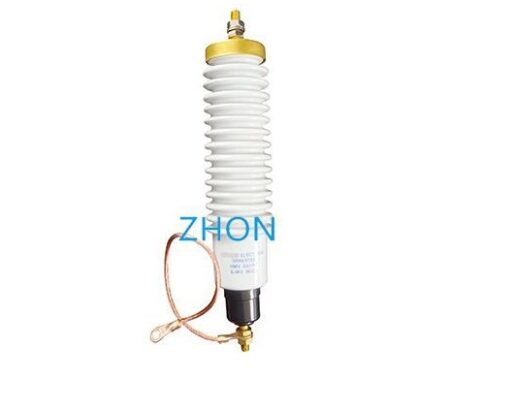

36kV Lightning arrester 1116 creepage distance

36kV Lightning arrester 1116 creepage distance

Category:
  • Description
  • Reviews (0)

Description

Condition of Use

Standards: IEC 60099-4

The ambient air themperatures is no higher than +40° C, no lower than-40° C.

The altitude above sea level dose not exceed 2000m.

AC system frequency is 50Hz or 60Hz.

AC voltage brought to bear on arrester for a long time dose not exceed arrester’s

continuous operating voltage.

Maximum wind speed dose not exceed 35m/s.

The earthquake intensity dose not exceed 7 degrees.

  Type  Rated

Volta

MaximunContinuou

sOperatingVoltage

Current impulse

residual voltage

 2ms Rectangular current

impulsewithstand

 4/10µ s High current

impulse withstand

1/4µ s Lightning

Current impulse

8/20µ s Lightning

current impulse

30/60µ sSwitchingcurrent impulse
 kV(rms) kV(rms) kV(crest) kV(crest)  kV(crest) (A)  kA(crest)
 YH10W-36 36 28.8 100 108 92.7 250 65
